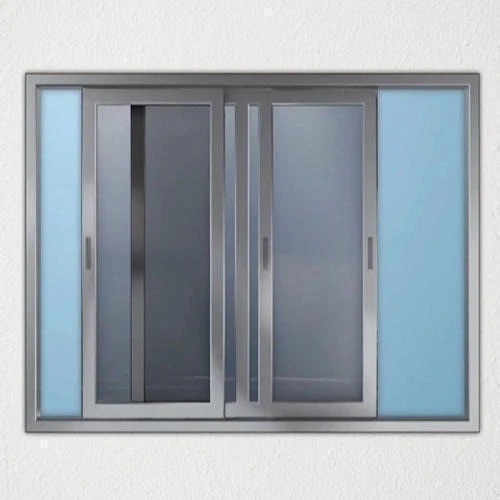

Sliding aluminium window is a type of window where the shutters move horizontally along tracks, instead of opening inward or outward. It typically has two or more panels, where one or more panels slide over the other to open and close. This design is widely used for its space-saving and modern functionality.

Features of Sliding Aluminium Windows:

·         Space Saving: Does not require extra space for opening, ideal for compact areas.

·         Smooth Operation: Slides easily on rollers along a track.

·         Durable & Strong: Aluminium frames are corrosion-resistant and long-lasting.

·         Large Glass Area: Provides better natural light and outside view.

·         Low Maintenance: Minimal moving parts make it easy to maintain.

·         Modern Look: Sleek and stylish design suitable for contemporary homes.

·         Weather Resistant: Proper sealing helps reduce dust, air, and water entry.

·         Customizable: Available in multiple track options (2-track, 3-track) and finishes.

·         Secure: Can be fitted with locks and optional mosquito mesh.

These windows are commonly used in bedrooms, living rooms, balconies, offices, and commercial spaces, especially where space efficiency and wide openings are required.

1. Material Details

·         Frame Material: High-grade aluminium alloy (6063-T5 / T6)

·         Profile Type: Extruded aluminium sliding sections

·         Profile Thickness: 1.0 mm – 1.6 mm (standard residential range)

·         Surface Finish Options:

·         Powder-coated (standard colours)

·         Anodized

·         Wood finish / PVDF coating

·         Thermal Break (Optional): Polyamide strip for insulation

2. Frame & System Specifications

·         Frame Depth: 50 mm – 90 mm (depending on system design)

·         Shutter/Profile Size: ~29 mm sliding series (common system)

·         Opening Type: Horizontal sliding (2-track / 3-track / multi-track)

·         Panel Configuration: 2, 3, or 4 shutters (customizable)

·         Track System: Aluminium tracks with smooth roller movement

3. Glass Specifications

Glass Type Options:

·         Float glass

·         Toughened glass

·         Laminated safety glass

·         Double-glazed (DGU) / insulated glass

Glass Thickness:

·         Single glazing: 5 mm – 12 mm

·         Double glazing: ~20 mm – 24 mm

1. Glass Brand (Optional): Saint-Gobain or equivalent

4. Hardware & Accessories

1. Rollers: Heavy-duty nylon / stainless steel rollers (up to ~80 kg load per panel)
2. Locking System:
3. Single-point lock (standard)
4. Multi-point locking (optional)
5. Handles: Aluminium / zinc alloy handles
6. Gaskets: EPDM rubber sealing for air & water tightness
7. Optional:
8. Mosquito mesh (sliding type)
9. Track stopper / buffer

5. Performance Specifications

1. Air Tightness: ~10.7 m³/h·m²
2. Water Tightness: Up to 300 Pa
3. Wind Resistance: Up to 2000 Pa
4. Sound Insulation: ~25 dB (higher with double glazing)
5. Thermal Performance: Improved with double glazing / thermal break

6. Key Features

·         Space-saving horizontal sliding design

·         Smooth and effortless operation with rollers

·         Slim aluminium profiles allow larger glass area and more natural light

·         Strong, corrosion-resistant, and low maintenance

·         Suitable for humid and coastal climates

·         Customizable sizes, tracks, and finishes

·         Compatible with insect mesh and safety glass

·         Prepare the Opening

·         Position the Frame

·         Fix the Frame

·         Install Tracks (if separate)

·         Fill the Gaps

·         Install Glass in Shutters (if not pre-glazed)

·         Install Shutters (Sliding Panels)

·         Adjust Rollers

·         Install Hardware

·         Apply Sealant

·         Final Check
