Product Information:-

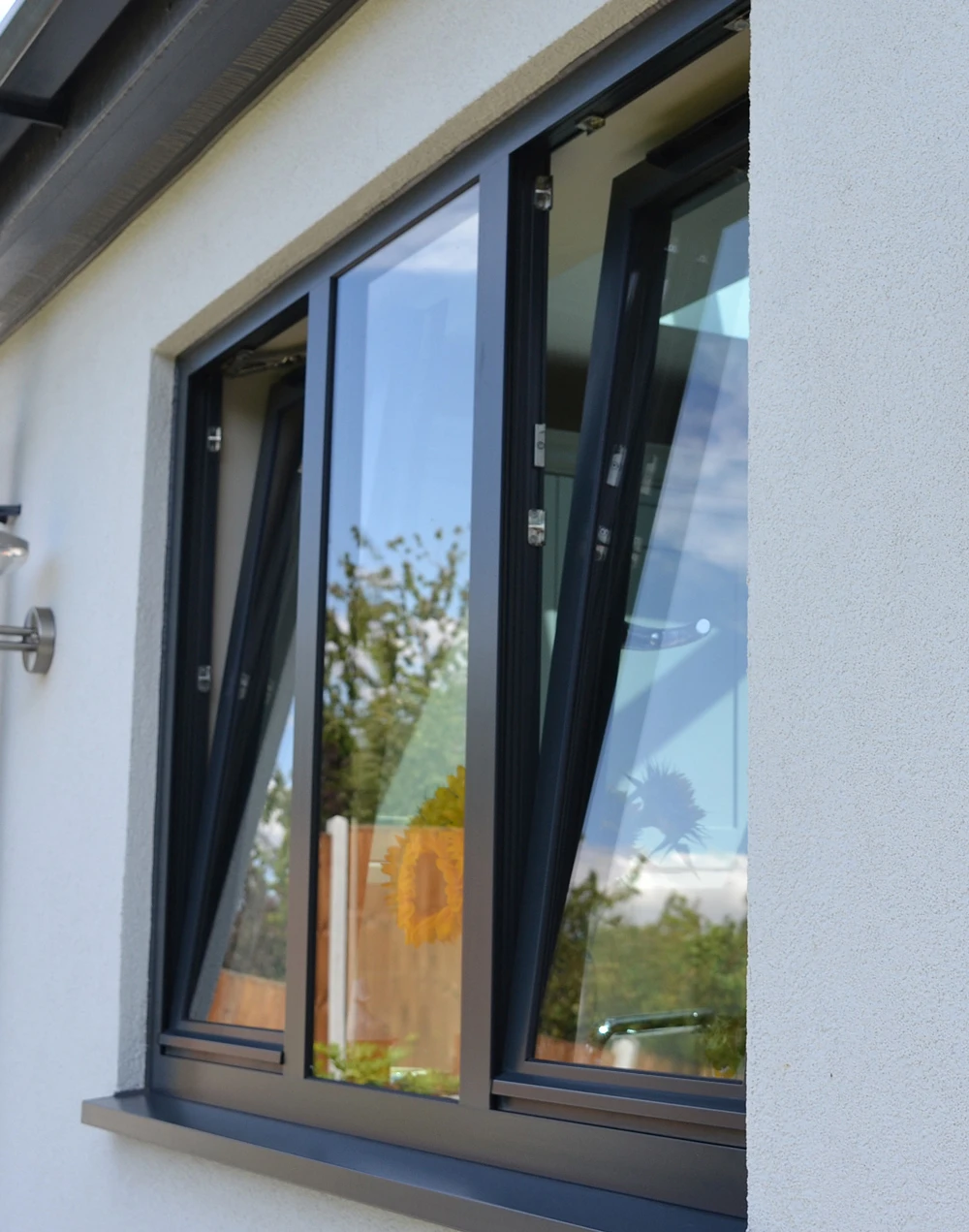

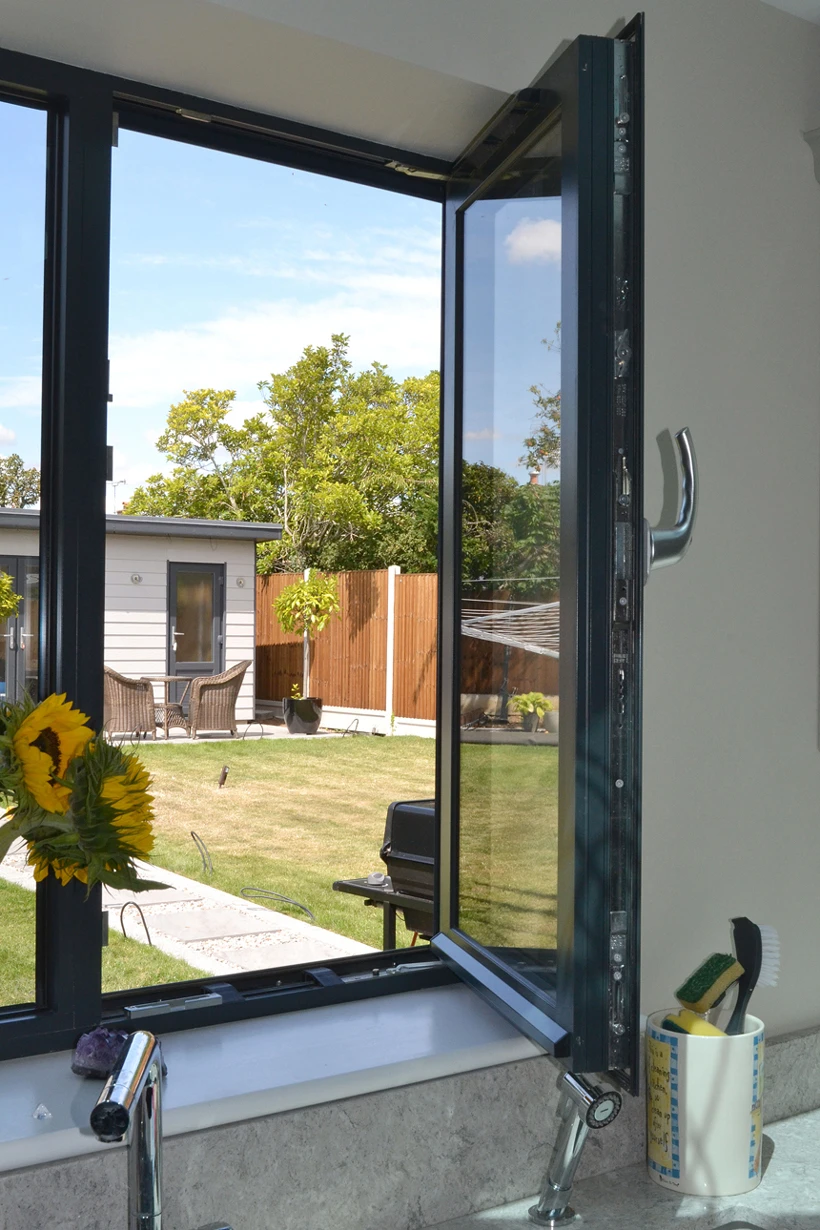

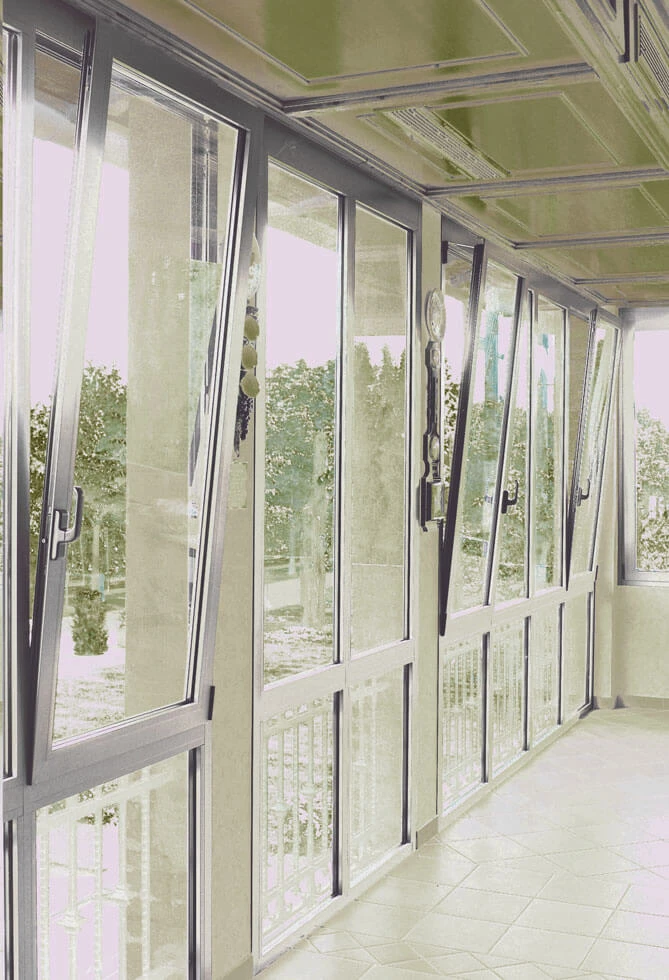

Tilt-turn aluminium window is a versatile window system that can open in two ways using a single handle—tilting inward from the top for ventilation or fully opening inward like a casement window for easy access and cleaning. It is widely used in modern buildings for its functionality and safety.

Features of Tilt-Turn Aluminium Windows:

·         Dual Opening System: Can tilt for controlled airflow or turn fully for maximum ventilation.

·         Excellent Ventilation: Tilt mode allows fresh air while maintaining security.

·         High Security: Multi-point locking system ensures better safety.

·         Easy Cleaning: Inward opening makes it easy to clean both sides from inside.

·         Strong & Durable: Aluminium frames are corrosion-resistant and long-lasting.

·         Airtight & Weatherproof: Provides excellent sealing against dust, noise, and rain.

·         Energy Efficient: Compatible with double or triple glazing for insulation.

·         Modern Design: Sleek and premium look suitable for contemporary spaces.

These windows are ideal for homes, apartments, offices, and high-rise buildings, especially where safety, ventilation control, and ease of maintenance are important.

Product Specifications:-

1. Material Details

·         Frame Material: High-grade aluminium alloy (6063-T5 / T6)

·         Profile Type: Extruded aluminium sections with multi-chamber design

·         Profile Thickness:

·         Frame: 1.4 mm – 2.2 mm

·         Sash: 1.6 mm – 2.8 mm

·         Thermal Break: Polyamide strip (typically 24–34 mm) for insulation

·         Surface Finish Options:

·         Powder-coated (RAL colours)

·         Anodized

·         PVDF / wood finish

2. Frame & System Specifications

·         Frame Depth: ~70 mm – 100 mm (standard system)

·         Opening Type: Dual operation (Tilt + Turn inward)

·         Maximum Sash Size:

·         Width: Up to 1500–1600 mm

·         Height: Up to 1800–3000 mm

·         Maximum Sash Weight: Up to 150–170 kg (hardware dependent)

3. Glass Specifications

·         Glass Type Options:

·         Toughened glass

·         Laminated glass

·         Low-E glass

·         Double / Triple glazing

·         Glass Thickness:

·         Single glazing: 5–10 mm

·         Double glazing: 20–40 mm

·         Triple glazing: Up to 50 mm

4. Hardware & Accessories

·         Operating Handle: Multi-position handle (90° tilt / 180° turn)

·         Hinges: Heavy-duty concealed / visible hinges

·         Locking System: Multi-point locking system for high security

·         Gaskets: EPDM rubber sealing

·         Optional:

·         Insect mesh

·         Child safety restrictor

·         Concealed fittings

5. Performance Specifications

·         Air Tightness: ~10.7 m³/h·m²

·         Water Tightness: Up to 300 Pa

·         Wind Resistance: 2000–2400 Pa

·         Thermal Performance (U-Value): ~1.0 – 1.4 W/m²K

·         Sound Insulation: ~25–40 dB

6. Key Features

·         Dual opening system (tilt for ventilation, turn for full opening)

·         High security with multi-point locking

·         Excellent thermal and acoustic insulation

·         Allows safe ventilation without full opening

·         Easy cleaning from inside

·         Strong, lightweight, and corrosion-resistant aluminium structure

·         Slim profiles for maximum glass area and modern aesthetics

How to Install?

·         Prepare the Opening

·         Position the Frame

·         Fix the Frame

·         Fill the Gaps

·         Install the Sash (Shutter)

·         Install Hardware Mechanism

·         Adjust the Window

·         Install Glass (if not pre-glazed)

·         Apply Sealant

·         Final Testing

Important Tips

·         Alignment is critical—even small errors affect tilt/turn function.

·         Use trained installers for best performance.

·         Avoid forcing the handle in wrong position.

·         Regularly lubricate hardware for long life.

·         Use double-glazed glass for better insulation and performance.
